587-1016-247F

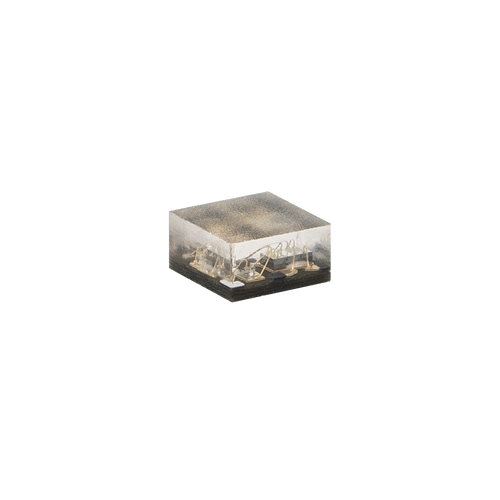

587 SMD LED 1616 pkg w/6 pins, ADDRESSABLE RGB LED, Dual Wire, 7" Reel

  • Specifications

    Specifications
    Series 587
    Certifications RoHS
    Status Active
    Package 1616
    Dimension (mm): Length 1.6
    Dimension (mm): Width 1.6
    Dimension (mm): Height 0.9
    Mounting Orientation Top View
    Number of Control Wires Dual Wire
    IC Embedded Yes
    Features Built-in IC
    Output RGB
    Emitted Color Red
    Emitted Color 2 Green
    Emitted Color 3 Blue
    Die 1 AlInGaP
    Die 2 InGaN
    Die 3 InGaN
    Lens Color Non-Tinted, Non-Diffused
    Packaging Option 7" Reel
    Quantity (per reel/sample) 3000
    Viewing Angle 120
    Test Current 5 mA
    Intensity (mcd) COLOR 1 Min 40
    Intensity (mcd) COLOR 1 Typ 65
    Intensity (mcd) COLOR 1 Max 120
    Intensity (mcd) COLOR 2 Typ 85
    Intensity (mcd) COLOR 3 Typ 20
    Forward Voltage (vdc) - Typ 5
    Forward Voltage (vdc) - Max 5.5
    Power Dissipation (mW) COLOR 1 400
    Power Dissipation (mW) COLOR 2 400
    Power Dissipation (mW) COLOR 3 400
    Intensity (mcd) COLOR 2 Min 60
    Intensity (mcd) COLOR 3 Min 15
    Forward Voltage (vdc) - Min 3.3
    Continuous Forward Current (mA) 5mA
    Electrostatic Discharge (HBM) (V) COLOR 1 2000
    Electrostatic Discharge (HBM) (V) COLOR 2 2000
    Electrostatic Discharge (HBM) (V) COLOR 3 2000
    Operating Temperature Max +85°C (+185°F)
    Operating Temperature -40°C to +85°C (-40°F to +185°F)
    Storage Temperature -40°C to +105°C (-40F to +221°F)
    Solder Max Time/Temp °C 10 sec @ 260 °C
